Mimaki Vinyl Cutter Blade: 60° Plotter Guide

Mimaki Vinyl Cutter Blade for 60° Plotter Cutting

A Mimaki vinyl cutter setup needs the correct blade geometry, holder fit, and machine settings to produce clean lettering and contour cuts. This 60-degree plotter blade is listed for compatible Mimaki cutting plotters and CNC engraving equipment. The steeper angle can be considered for detailed graphics and materials that require deeper tip engagement, but compatibility should always be checked against the machine and holder before installation.

JEEFOO supplies plotter cutting tools from Guangzhou, China. Buyers can provide the Mimaki model, holder type, material name, and thickness for a more accurate comparison. These details matter because blades that look similar can differ in shank size, exposed length, and holder fit.

60-Degree Mimaki Blade Specifications

• Product type: cutting plotter knife
• Cutting angle: 60 degrees
• Listed cutting-thickness reference: 0.25 mm
• Listed applications: compatible Mimaki cutting plotter and CNC engraving machine
• Material statement: the original specification describes imported German cutting material
• Machining statement: the original specification describes CNC precision machining

The statements above summarize the available product information without extending it into unsupported performance guarantees. Material response varies, and a 0.25 mm thickness reference should be compared with the actual media, backing liner, blade exposure, and machine settings.

When to Choose a 60-Degree Cutting Angle

A 60-degree blade uses a steeper cutting angle than common general-purpose alternatives. It may be useful for small lettering, sharp corners, intricate decals, sign vinyl, labels, masking media, and other detailed contour work when the blade is compatible with the holder. The angle alone does not determine the result. Cutting force, speed, offset, tip condition, and the cutting strip all influence edge quality.

Use the minimum blade exposure needed to cut the face material. If too much blade extends from the holder, the tip can drag, small characters can lift, and the backing liner may be scored. Excessive force can hide a worn blade for a short time but may reduce consistency and damage the cutting strip.

How to Check Mimaki Vinyl Cutter Compatibility

Start by identifying the exact cutter model and the installed blade holder. Compare the replacement blade with the existing shank diameter and overall length. Confirm the holder’s supported blade series in the machine documentation. A matching 60-degree angle is not sufficient if the shank or holder design is different.

For related hardware, review the Mimaki plotter blade holder page. You can also compare options in the cutting plotter blade range. Model-specific manuals and troubleshooting information are available through official Mimaki support.

Setup Steps for Cleaner Test Cuts

1. Power down the machine when the manual requires it before changing the blade.
2. Remove adhesive residue and dust from the holder.
3. Insert the blade without forcing the shank.
4. Set blade exposure slightly beyond the face-film thickness, not the full liner thickness.
5. Run a small test pattern with conservative force and speed.
6. Inspect corners, curves, weedability, and marks on the backing liner.
7. Adjust one setting at a time and repeat the test before production.

If the test cut shows incomplete corners, first check tip condition, free holder rotation, and debris. If the liner is deeply marked, reduce blade exposure or force. Keeping notes for each media type helps operators reproduce reliable settings.

Care and Replacement

Store unused blades dry and protected so their tips do not touch hard surfaces. Clean adhesive buildup from the holder regularly. Replace a chipped or worn blade instead of continually increasing force. A clean holder and a correctly exposed tip help the blade rotate through curves and preserve small details.

Ordering from JEEFOO in Guangzhou, China

When requesting a blade for a Mimaki vinyl cutter, include the machine model, holder type, media, thickness, cutting angle, and expected application. JEEFOO can compare those details with the listed 60-degree blade specifications. This information is useful for sign-making, decals, labels, lettering, and compatible engraving workflows.

This page is a product selection guide and does not replace the machine manufacturer’s instructions. Confirm compatibility and complete a test cut before a full production run.

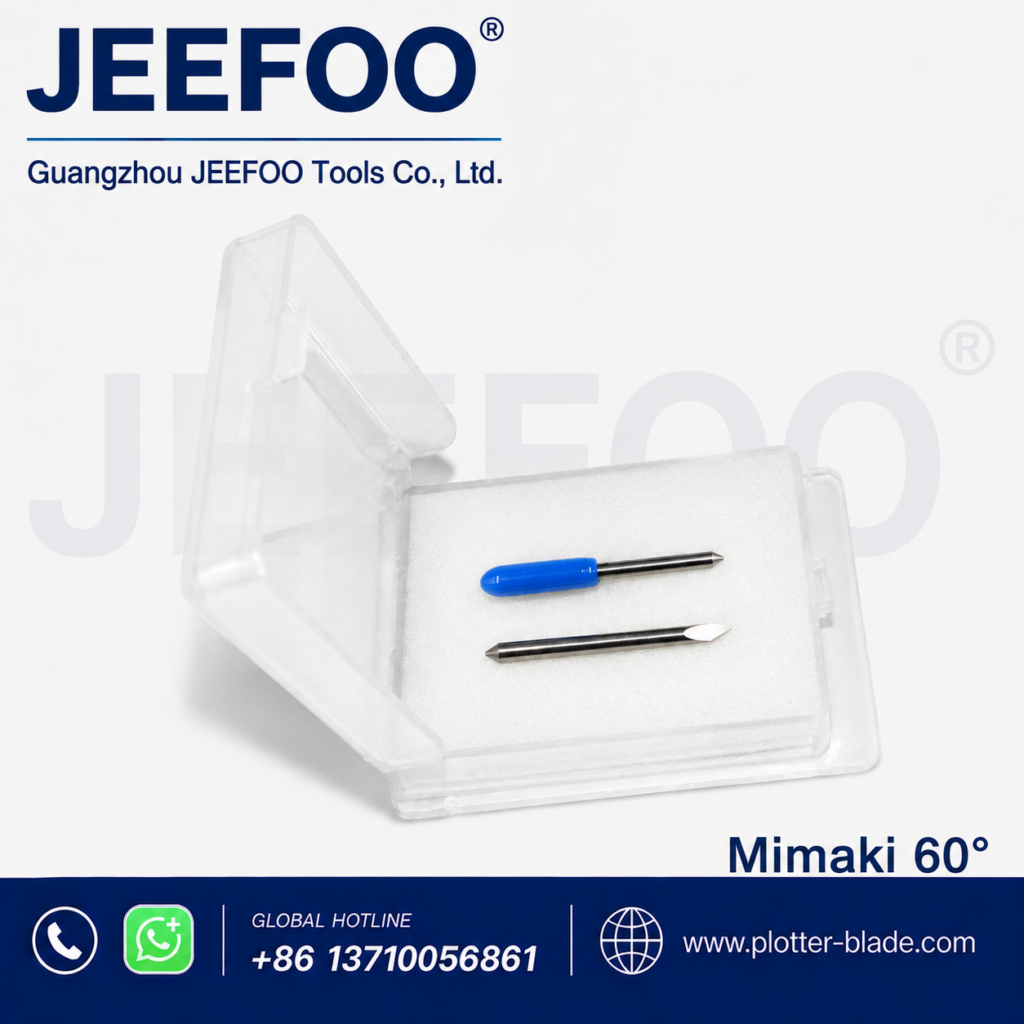

Product Images
