Roland Plotter Blade Holder: 7 Expert Buying Tips

Roland plotter blade holder selection directly affects cutting accuracy, blade stability, and media quality. This guide explains compatibility, setup, adjustment, maintenance, troubleshooting, and wholesale sourcing so sign makers can choose and use the right holder with confidence.

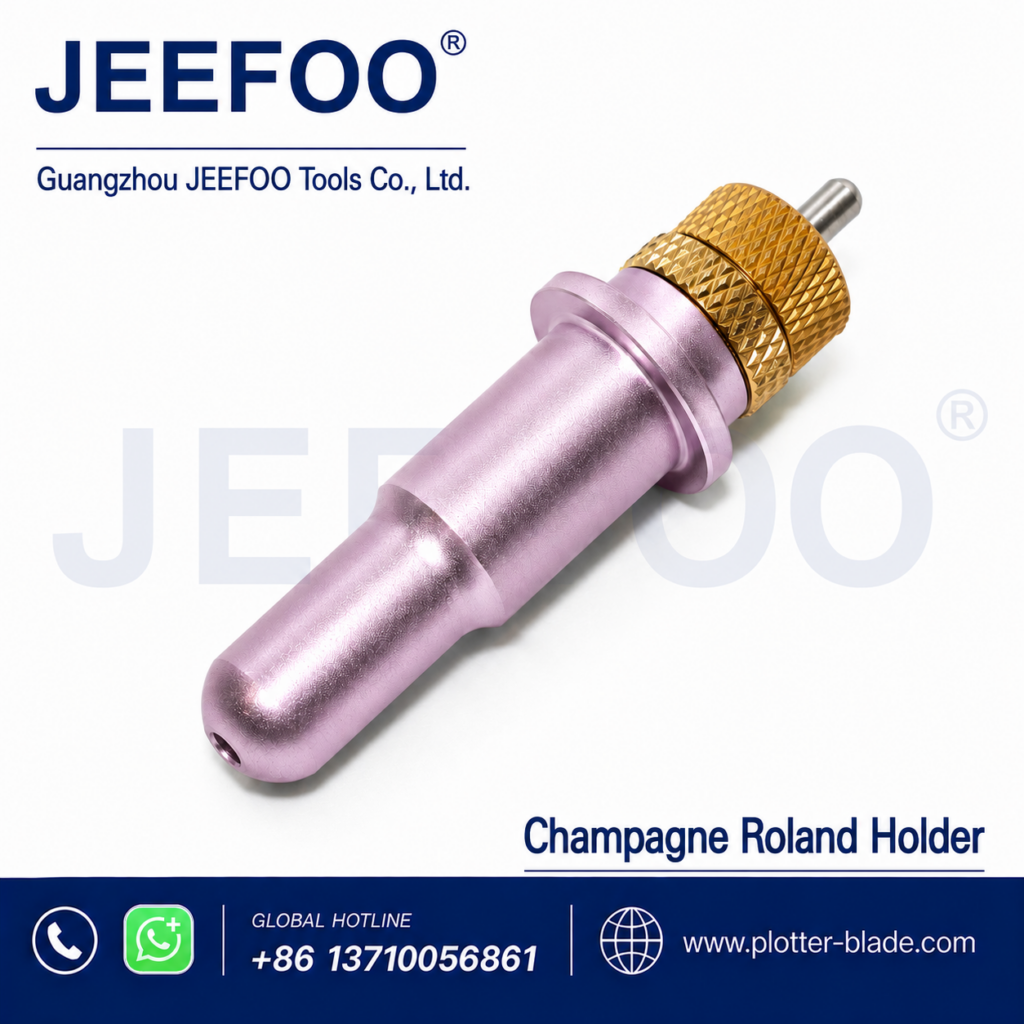

What Is a Roland Plotter Blade Holder?

A Roland plotter blade holder secures the cutting blade inside the carriage of a compatible vinyl cutter. It keeps the blade aligned while allowing the tip to rotate through curves and corners. Correct fit and adjustment help produce clean lettering, smooth contours, and reliable weeding.

7 Expert Buying Tips

1. Confirm the plotter model. Machine families may use similar-looking holders with different carriage dimensions.
2. Compare the original part. Measure body diameter, overall length, flange position, and blade opening.
3. Check blade compatibility. Verify blade shaft diameter and tip geometry.
4. Inspect adjustment quality. Threads should move smoothly and hold their setting.
5. Choose stable construction. A straight, well-machined body supports repeatable cutting.
6. Request a sample. Test fit and cut quality before a large wholesale order.
7. Confirm supplier support. Share machine and blade details for compatibility guidance.

Roland Plotter Blade Holder Compatibility

Do not assume universal compatibility. Check the model label on the plotter, then compare the existing holder with the replacement. Confirm that the carriage clamp closes securely without forcing the holder. The blade must fit the internal opening and rotate freely. When available, consult Roland support documentation for machine-specific information.

For purchasing support, provide the plotter model, photographs of the current holder, holder dimensions, blade shaft diameter, and typical media. These details reduce ordering mistakes and help suppliers recommend an appropriate configuration.

Installation and Blade Adjustment

1. Power off the plotter and remove the existing tool carefully.
2. Insert a compatible blade into the holder.
3. Set minimal blade exposure; only the material layer should be cut.
4. Seat the holder straight in the carriage and secure the clamp.
5. Run a small test cut on scrap media.
6. Adjust blade exposure, force, and speed one step at a time.

Excess blade exposure is a common cause of poor corners, damaged liners, and difficult weeding. Mechanical blade depth and software cutting force work together. Start low, inspect the test cut, and increase only when necessary.

Cutting Quality and Troubleshooting

If lines do not close, check whether the holder is loose, the blade tip is worn, or adhesive residue prevents free rotation. If the backing paper is deeply scored, reduce blade exposure before lowering force. Jagged curves can result from a damaged blade, excessive speed, holder play, or unsuitable offset settings.

Clean the holder opening with dry air or a soft brush. Do not use tools that may scratch the internal surface. Replace chipped blades promptly. Keep spare holders and blades in labeled containers so different angles and specifications are not mixed.

Applications

A compatible Roland plotter blade holder can support sign vinyl, label material, masking film, heat-transfer vinyl, paper, and other media approved for the machine. Blade type, force, speed, and test-cut results should always match the material.

Frequently Asked Questions

Does one holder fit every Roland cutter?

No. Verify the machine, carriage, holder dimensions, and blade specification before ordering.

How much blade should be exposed?

Only enough to cut the material layer. Excess exposure reduces accuracy and can damage the liner.

When should the holder be replaced?

Replace it if the body is bent, adjustment threads slip, the blade no longer rotates freely, or persistent play affects cutting quality.

Order a Reliable Roland Plotter Blade Holder

Match the holder to the machine and blade, test with conservative settings, and approve a sample before volume purchasing. See our Roland cutting plotter pen holder guide or contact Guangzhou JeeFoo Tools Co., Ltd for samples and wholesale support.
